is scanning page as quick as a flash
Golden Pin Design Award 2019

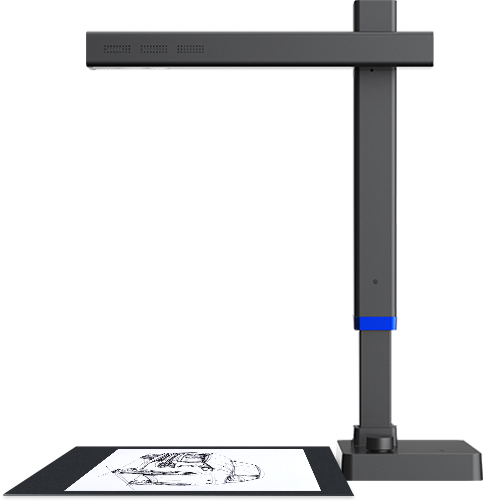

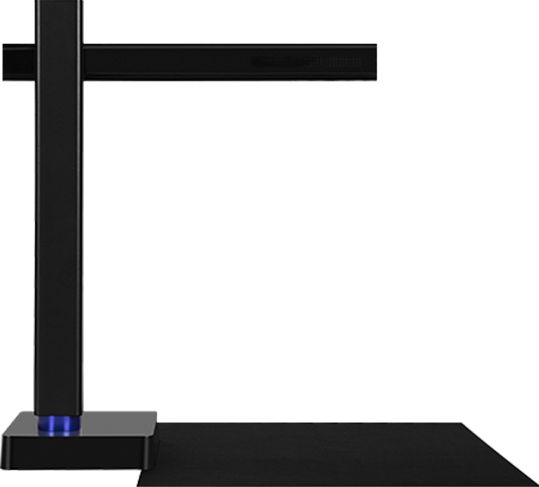

Shine Pro SeriesPortable document scanner
is scanning page as quick as a flash
is scanning page as quick as a flash
See Shine Pro Series In Action
Watch this Video NOWShine Pro Series With various features manage with multiple kinds of work projects scanning.
Shine 500/800 pro
Shine 800 A3 pro
USB 2.0
Play-and-Plug
Connection
Play-and-Plug
Connection
Fast
scanning Speed
≤1s
scanning Speed
≤1s
Foldable
&
Lightweight
&
Lightweight
HD
Sensor
Sensor
Scan Max
A4
A4
Zero Second
Warm-Up
Warm-Up
Intelligent
Proprietary
Software
Proprietary
Software
8
Megapixel
Megapixel
Adjustable
Height
Height
180+ Language
OCR
OCR
1 Second
Per Page
Per Page
AI
Optimization
Optimization
Protability
Auto
Scan
Scan
Video
Recording
Recording
Scan Max
A3
A3

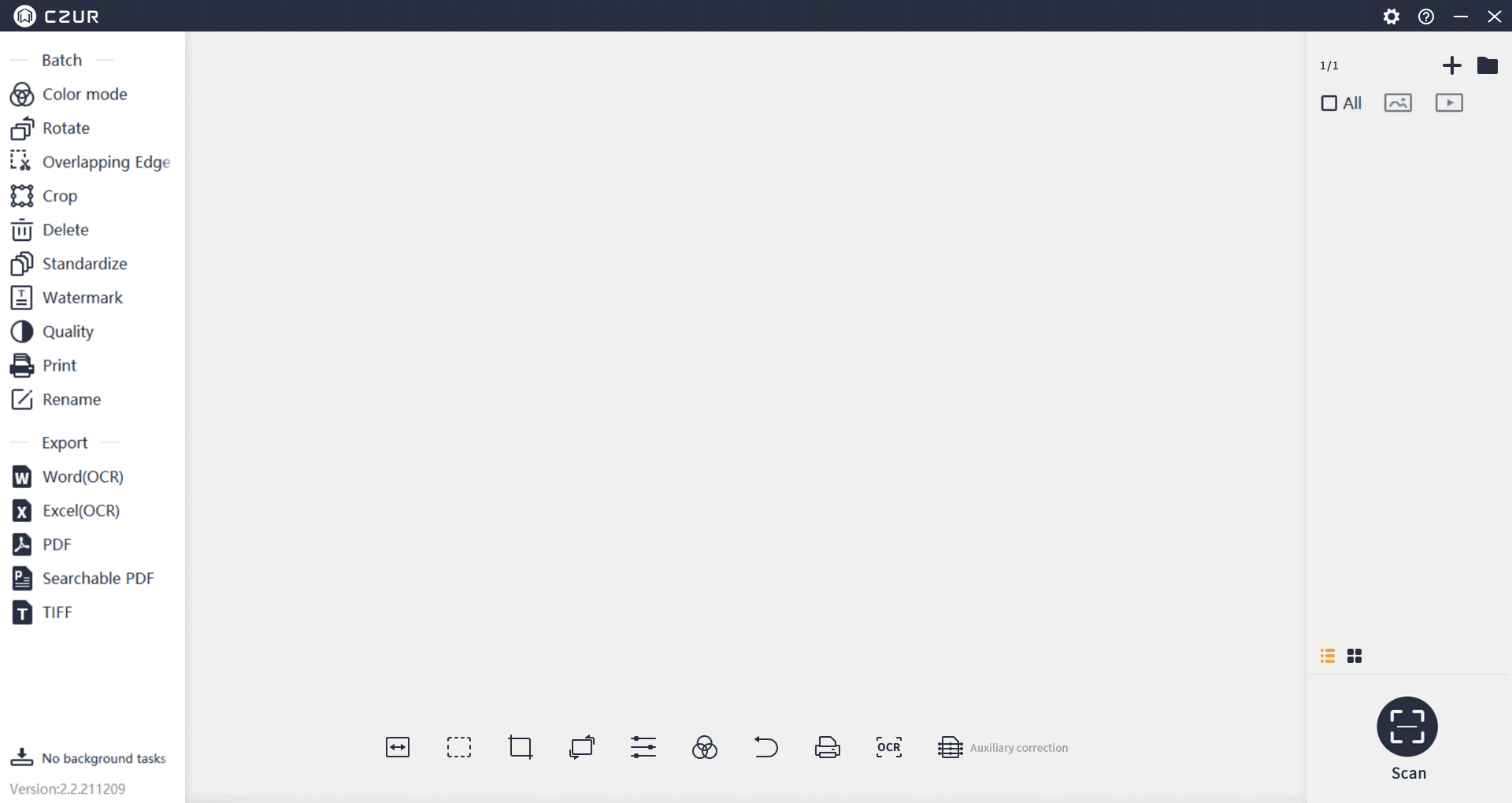

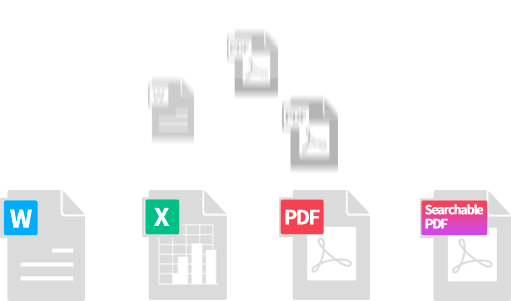

Smart Paging & Auto cropping丨Combine Sides丨Stamp Mode丨Different Colour ModesAvailable for Windows & macOS Advanced OCROCR（optical character recognition）
recognize up to 186 languages,
help you layout scanned document enable editing.
recognize up to 186 languages,
help you layout scanned document enable editing.

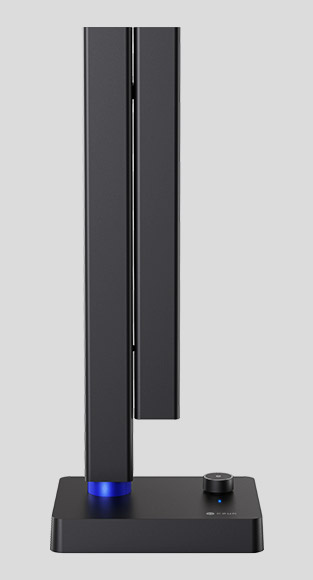

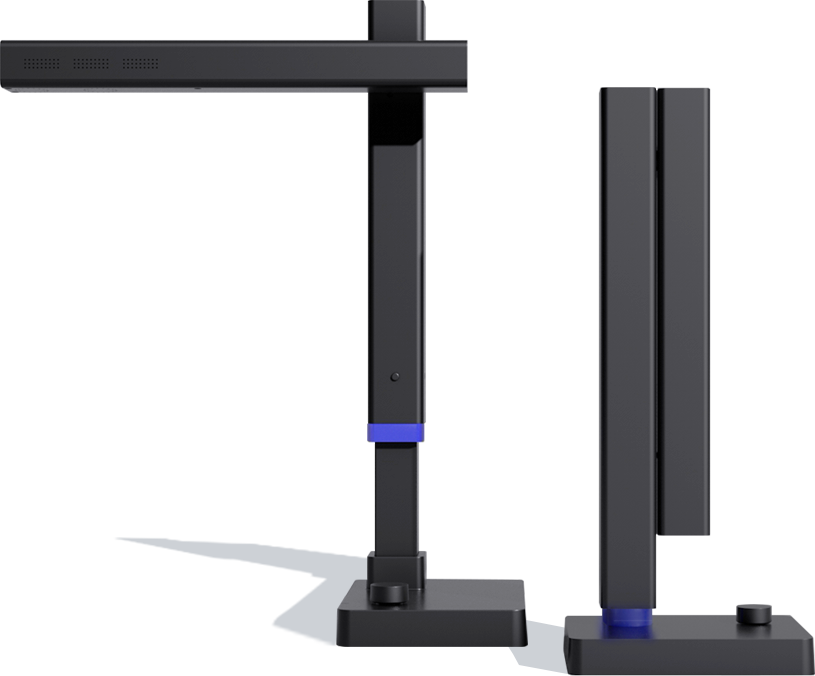

Video recording feature built within helps you extend with diversities work items.It is an integration of modern art and technologyCoated with a full body metallic and concealed connection port with foldable design.

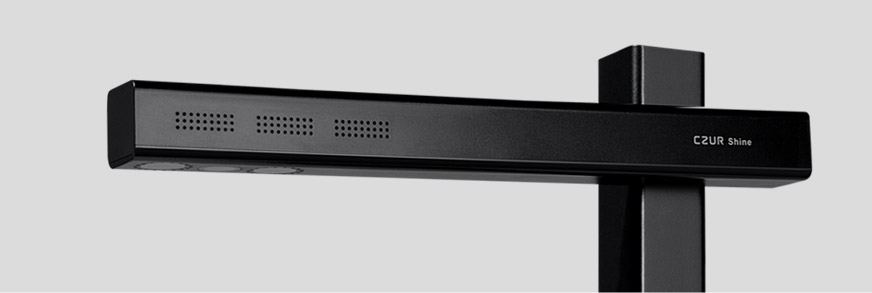

Two lights on top of design to
be adjusted by professional
technician,this is to ensure
that sufficient brightness is
supplied.
Knob steepled can be adjust
with fine touching.
be adjusted by professional
technician,this is to ensure
that sufficient brightness is
supplied.
Knob steepled can be adjustwith fine touching.
Samples

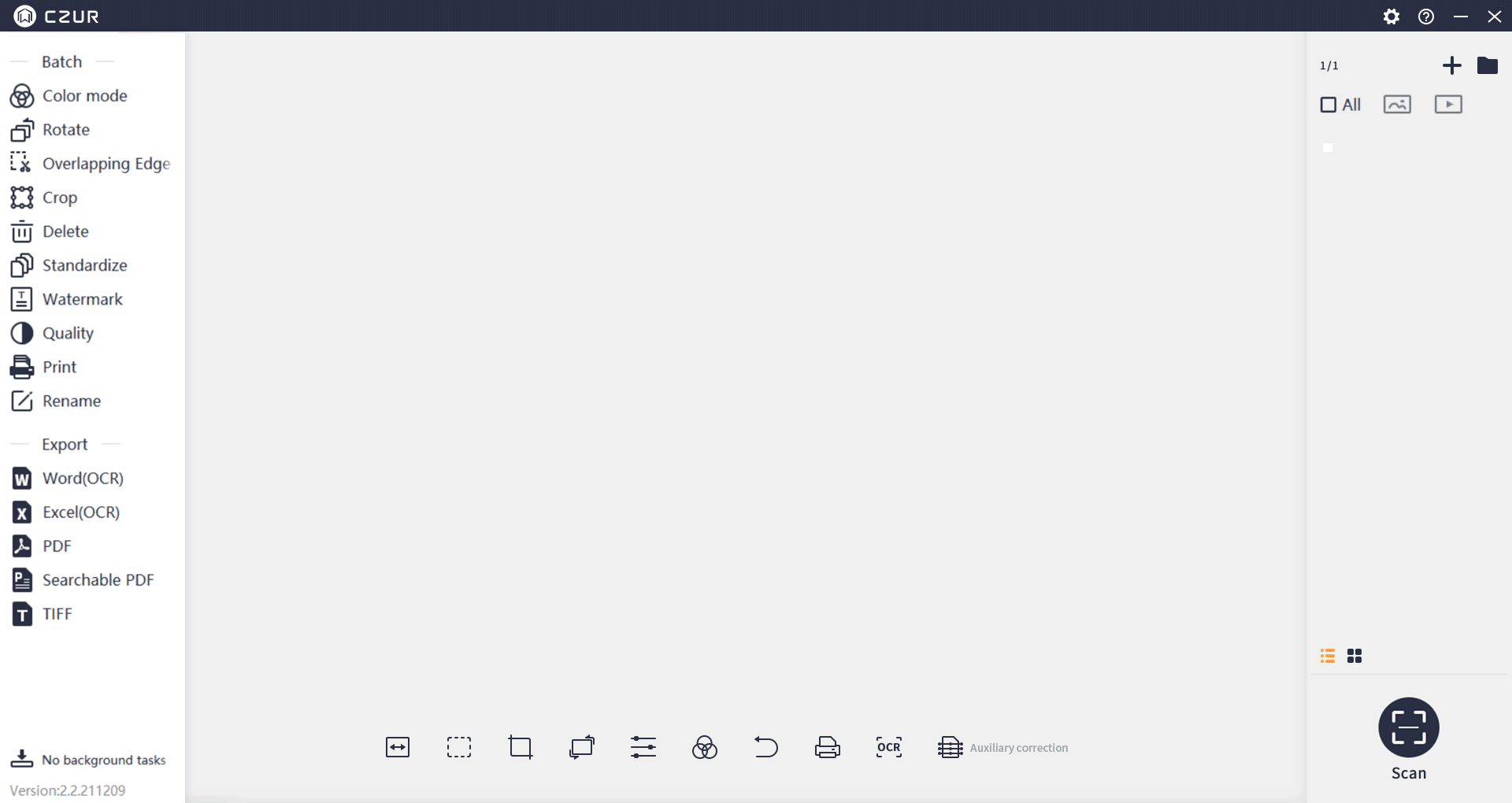

ID Card

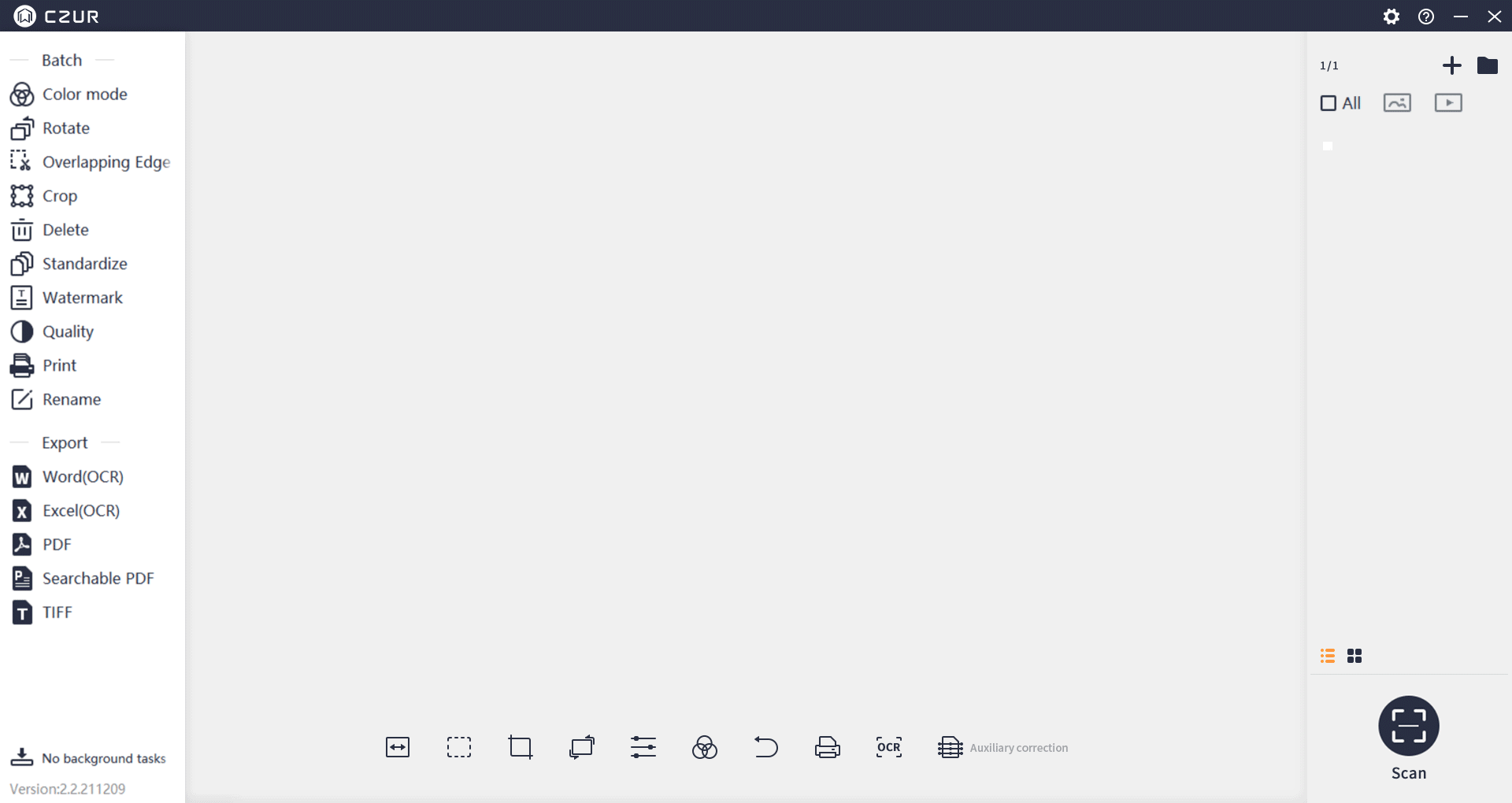

Envelope
Diploma
Product Applications
Product Dimensions
Technical Specifications
Product Type:
Shine500 Pro
Shine800 Pro
Shine 800A3 Pro
Sensor/Pixel:
CMOS 5 megapixel (2592*1944)
CMOS 8 megapixel (3264*2448)
CMOS 8 megapixel (3264*2448)
DPI:
210
270
A4: 270；A3: 205
Scanning Size:
≤A4
≤A4
≤A3
Scan Speed:
≤1S
≤1S
≤1S
Video Parameter:
MJPG 2592*1944@10Fps
MJPG 3264*2448@10Fps
MJPG 3264*2448@10Fps
Light Control:
Stepless adjusted
Stepless adjusted
Stepless adjusted
Image format:
JPG
JPG
JPG
Color bit depth:
24 bits
24 bits
24 bits
Export format:
"JPG, PDF, Searchable PDF,
Word, Excel, TIFF"
Word, Excel, TIFF"
"JPG, PDF, Searchable PDF,
Word, Excel, TIFF"
Word, Excel, TIFF"
"JPG, PDF, Searchable PDF,
Word, Excel, TIFF"
Word, Excel, TIFF"
USB:
USB2.0
USB2.0
USB2.0
Top LED lights:
✓
✓
✓
Side Light:
✕
✕
✕
Focus mode:
Fixed focus
Fixed focus
Auto Focus
Scanning method:
Device Control, Software triggering,
Foot pedal
Foot pedal
Device Control, Software triggering,
Foot pedal
Foot pedal
Device Control, Software triggering,
Foot pedal
Foot pedal
System support:
XP, Win 7/ 8/10, 32/64-bit;
macOS 10.11 and above;
macOS 10.11 and above;
XP, Win 7/ 8/10, 32/64-bit;
macOS 10.11 and above;
macOS 10.11 and above;
XP, Win 7/ 8/10, 32/64-bit;
macOS 10.11 and above;
macOS 10.11 and above;
OCR:
✓
✓
✓
OCR languages:
180+
180+
180+
Smart paging:
✓
✓
✓
Smart tilt corrections and auto-cropping:
✓
✓
✓
trimming:
✓
✓
✓
Color mode:
✓
✓
✓
Combine sides:
✓
✓
✓
Manual Selection scanning:
✓
✓
✓
Video recording:
✓
✓
✓
Auto-scan:
✓
✓
✓
Product appearance:
Black
Black
Black
Packing Size:
492*175*217 MM （L*W*H）
492*175*217 MM （L*W*H）
452*162*215 MM （L*W*H）
Weight:
0.75 N.W. 1.85kg G.W.
0.75 N.W. 1.85kg G.W.
1kg N.W. 2.3kg G.W.
Packaging list:
Main Device,USB Cable,Foot Pedal,
Soft Pad,Getting Started Guide
Soft Pad,Getting Started Guide
Main Device,USB Cable,Foot Pedal,
Soft Pad,Getting Started Guide
Soft Pad,Getting Started Guide
Main Device,USB Cable,Foot Pedal,
Soft Pad,Getting Started Guide
Soft Pad,Getting Started Guide
